Published on 14.04.20 in Vol 6, No 2 (2020): Apr-Jun

Preprints (earlier versions) of this paper are available at http://preprints.jmir.org/preprint/18828, first published Mar 21, 2020.

This paper is in the following e-collection/theme issue:

    Original Paper

    Predicting COVID-19 Incidence Through Analysis of Google Trends Data in Iran: Data Mining and Deep Learning Pilot Study

    1Department of Health Information Management, School of Allied Medical Sciences, Tehran University of Medical Sciences, Tehran, Iran

    2Department of Electrical and Computer Engineering, McMaster University, Hamilton, ON, Canada

    3School of Health Management and Information Sciences, Iran University of Medical Sciences, Tehran, Iran

    4Department of Pharmaceutics, School of Pharmacy, Shahid Beheshti University of Medical Sciences, Tehran, Iran

    Corresponding Author:

    Sharareh R Niakan Kalhori, PhD

    Department of Health Information Management

    School of Allied Medical Sciences

    Tehran University of Medical Sciences

    3rd Floor, No 17

    Farredanesh Alley, Ghods St, Enghelab Ave

    Tehran

    Iran

    Phone: 98 21 88983025

    Email: niakan2@gmail.com


    ABSTRACT

    Background: The recent global outbreak of coronavirus disease (COVID-19) is affecting many countries worldwide. Iran is one of the top 10 most affected countries. Search engines provide useful data from populations, and these data might be useful to analyze epidemics. Utilizing data mining methods on electronic resources’ data might provide a better insight into the COVID-19 outbreak to manage the health crisis in each country and worldwide.

    Objective: This study aimed to predict the incidence of COVID-19 in Iran.

    Methods: Data were obtained from the Google Trends website. Linear regression and long short-term memory (LSTM) models were used to estimate the number of positive COVID-19 cases. All models were evaluated using 10-fold cross-validation, and root mean square error (RMSE) was used as the performance metric.

    Results: The linear regression model predicted the incidence with an RMSE of 7.562 (SD 6.492). The most effective factors besides previous day incidence included the search frequency of handwashing, hand sanitizer, and antiseptic topics. The RMSE of the LSTM model was 27.187 (SD 20.705).

    Conclusions: Data mining algorithms can be employed to predict trends of outbreaks. This prediction might support policymakers and health care managers to plan and allocate health care resources accordingly.

    JMIR Public Health Surveill 2020;6(2):e18828

    doi:10.2196/18828

    KEYWORDS



    Introduction

    Recently, a respiratory disease originating from coronavirus occurred in Wuhan City of China. Since the first positive case of this virus was in 2019, this coronavirus was named coronavirus disease (COVID-19) by the World Health Organization (WHO) [1]. Some hypotheses attribute the origin of this virus to seafood and bats [2].

    COVID-19 has spread globally and has affected most countries; it was defined as a pandemic by the WHO in March 2020 [3]. As of March 21, 2020, COVID-19 has affected 186 countries and territories around the world, with more than 280,000 confirmed cases and 11,842 deaths [4]. Iran is one of the top 10 countries affected by this virus [4].

    As COVID-19 is spreading rapidly worldwide, prediction models can help in health resource management and planning for prevention purposes. Google search data is one information resource that contains useful information to predict and estimate epidemics [5]. Data mining algorithms and techniques are well-known tools for predictive model development and data analysis. They can implicitly extract useful information from raw data [6-8]. The extracted knowledge can be used in different areas such as the health care industry. Recently, a large amount of data was generated in health care, including those on patients, diseases, and diagnoses.

    The tasks in data mining fall into two categories: (1) descriptive tasks that deal with the general properties of the data and (2) predictive tasks, wherein the goal is to build models that can estimate the mapping from inputs to outputs by using a sample of data called training data. The trained models can be deployed to make predictions of the outputs for unseen inputs. These techniques are more flexible and efficient for exploratory analysis than the traditional statistical analysis [9].

    In this study, data mining models were used to build predictive models from Google search data to predict the incidence of COVID-19 in Iran.


    Methods

    Dataset

    The daily new cases of coronavirus (daily incidence) from February 15, 2020, to March 18, 2020, in Iran were obtained from the Worldometer website [10].

    Google Trends [11] was searched for concepts related to COVID-19, from February 10, 2020, to March 18, 2020. The related concepts were suggested by one of the authors. A dataset consisting of 10 input features including the previous day’s search trends, cases of the previous day, and a target value (new cases of that day) was created. The total number of entries was calculated for the 37 days. The list of features is shown in Table 1. The terms in square brackets were searched in the corresponding Persian language words. The “pd” postfix in the features’ name indicates that the features are related to the previous day.

    Google Trends does not provide absolute search numbers but instead, provides a measure entitled interest over time, which is described as “A value of 100 is the peak popularity for the term. A value of 50 means that the term is half as popular. A score of 0 means there was not enough data for this term” [11]; for consistency, the values of the daily new cases were transformed to the range between 0 to 100.

    Table 1. Features used for predicting new COVID-19 cases.
    View this table

    Modeling and Evaluation

    Linear Regression

    One of the data mining techniques used for prediction tasks is linear regression. In a problem with one predictor, this technique tries to find the best line to fit. That line could relate the predictor and prediction values. The extended version of this one-predictor regression is called multiple linear regression and is used for multiple-predictor problems [12]. We used this type of linear regression in this study.

    Long Short-Term Memory

    Long short-term memory (LSTM) is an artificial recurrent neural network that is an effective model for the prediction of time series where data are sequential [9]. By storing the past in hidden states, they can predict the outputs more accurately. In this study, the aim was to estimate the number of positive COVID-19 cases through time; as this is a well-suited task for the LSTM model, we used this model in our study.

    The linear regression model and a 3-layer LSTM model (Figure 1) are employed to predict the daily new cases. RapidMiner Studio 9.3.001 (RapidMiner GmbH) and Python 3.7.3 (Python Software Foundation) were used for modeling and evaluation. Tensorflow (Google Brain Team) and Keras (François Cholle) were used as frameworks for training LSTM models. In addition, 10-fold cross-validation was used to evaluate the performance of the models, and the root mean square error (RMSE) metric was chosen for performance evaluation:

    Figure 1. Proposed LSTM network architecture. LSTM: long short-term memory.
    View this figure

    Results

    The features’ effect in the linear regression model is shown in Table 2. The RMSE for the linear regression model was 7.562 (SD 6.492). The LSTM RMSE was 27.187 (SD 20.705). The training and validation loss of the LSTM model is shown in Figure 2. The predictions made by these models are shown in Figure 3.

    Table 2. Features’ effect on new daily cases in the linear regression model.
    View this table
    Figure 2. Training and validation loss of the long short-term memory model. MSE: mean squared error.
    View this figure

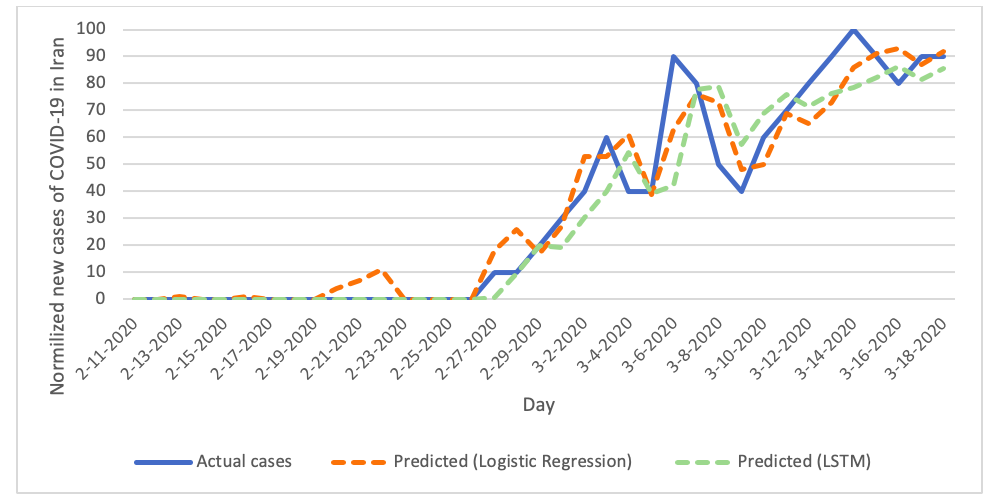

    Figure 3. Actual and predicted new cases of COVID-19. LSTM: long short-term memory; COVID-19: coronavirus disease.
    View this figure

    Discussion

    In this study, we proposed the use of prediction models for COVID-19 incidence in Iran using Google Trends data. Although the predictions are not very precise, they can be helpful for a base idea to build accurate models from more aggregation of data.

    The features’ effect of the linear regression model shows that besides new cases in the previous day, hand sanitizer, handwashing, and antiseptic topics were the focus of the population. It could be inferred that people’s worries were increasing, and they were seeking prevention solutions. The lags in the prediction might have originated from other countries’ incidence. In other words, the population could be more sensitive and engaged in their health care after hearing news about the epidemic in other countries. This model could be used for other types of interventions such as assessing individuals’ awareness and engagement. Health authorities might use these data for measuring the information’s broadcast effect on the population and obtaining feedback from the search statistics.

    The LSTM model showed a fluctuated performance in the folds while training loss was low. This indicates overfitting in the LSTM model because of the limited amount of training data. However, a low training error shows that the LSTM model can extract the pattern in the data. Therefore, we believe that by increasing the amount of training data, the LSTM model can outperform other models for this task. In addition, owing to the presence of just a few samples in each test fold (4 instances) and the subsequent high variation in RMSE, evaluation of the LSTM model was repeated with 3-fold cross-validation and the obtained RMSE was 13.45 (SD 7.90).

    Past work on influenza and Zika virus predictions, for example, in the study by Santillana et al [13] in 2015, proposed a machine learning method for predicting influenza in the United States. In their study, the authors used data from Google searches along with Twitter data, hospital visit records, and a surveillance system. They provided multiple estimates to have an unbiased and more accurate prediction. They also showed that social media contains important information for effectively predicting disease incidence.

    In 2017, McGough et al [14] also proposed a Zika virus prediction system by using Zika-related Google searches, Twitter microblogs, and a digital surveillance system. They also showed that the internet-based sources were useful to predict weekly Zika cases. In another related study in 2016, Majumder et al [15] used HealthMap surveillance data and Google Trends to predict cases of Zika virus in Colombia [15] and showed that digital surveillance data could be useful for the prediction of Zika cases. Further, in 2017, Teng et al [16] proposed a prediction model for Zika virus using search data from Google Trends and built the model using an autoregressive integrated moving average. They found a strong correlation between Zika-related searches and Zika cases. For the incidence prediction of influenza, socioenvironmental factors were considered when developing an epidemiological model named Susceptible Exposed to Infectious Recovered (SEIR) [17]. The model supports decision makers to factor the mass media and climate factors into the classical epidemic models. Another study emphasized the importance of environmental factors for the development of an influenza prediction model [18]. The findings of these studies along with our study show that internet resources could be helpful in pandemic forecasting.

    The easy-to-obtain Google search data is a more dynamic and available source in comparison with traditional data sources. It could be a representation of the population’s thoughts, concerns, conditions, and needs in multiple periods. The major strength of this study is use of these data to predict the epidemiology of COVID-19 for the first time in the country.

    In contrast, one major limitation of this study is the limited access to the Google Search data. Since Google Trends just provides data based on “interest” measure, more accurate and informative models could be built if the absolute search frequency is available for the researchers. It is worth mentioning that we used some of the keywords related to COVID-19 for extracting Google search frequencies; the selected keywords may have been incomplete and further research could aim to identify the most relevant set of keywords. In addition, future research should combine other data sources such as social media information, people’s contacts with the special call center for COVID-19, mass media, environmental and climate factors, and screening registries. Furthermore, in the broader context, such predictions could be made for other countries and even globally.

    In conclusion, the data mining models could help policymakers and health managers to plan health care resources and control the prevention of an epidemic outbreak. The availability of high-quality and timely data in the early stages of the outbreak collaboration of the researchers to analyze the data could have positive effects on health care resource planning.

    Conflicts of Interest

    None declared.

    References

    1. Guo Y, Cao Q, Hong Z, Tan Y, Chen S, Jin H, et al. The origin, transmission and clinical therapies on coronavirus disease 2019 (COVID-19) outbreak - an update on the status. Mil Med Res 2020 Mar 13;7(1):11 [FREE Full text] [CrossRef] [Medline]
    2. Giovanetti M, Benvenuto D, Angeletti S, Ciccozzi M. The first two cases of 2019-nCoV in Italy: Where they come from? J Med Virol 2020 May;92(5):518-521. [CrossRef] [Medline]
    3. Lu R, Zhao X, Li J, Niu P, Yang B, Wu H, et al. Genomic characterisation and epidemiology of 2019 novel coronavirus: implications for virus origins and receptor binding. The Lancet 2020 Feb;395(10224):565-574. [CrossRef]
    4. Prathap L, Jagadeesan V, Suganthirababu P, Ganesan D. Online Journal of Health and Allied Sciences. 2017. Association of quantitative and qualitative dermatoglyphic variable and DNA polymorphism in female breast cancer population   URL: https://www.ojhas.org/issue62/2017-2-2.pdf [accessed 2020-04-07]
    5. Yang S, Santillana M, Kou SC. Accurate estimation of influenza epidemics using Google search data via ARGO. Proc Natl Acad Sci U S A 2015 Nov 24;112(47):14473-14478 [FREE Full text] [CrossRef] [Medline]
    6. Piatetsky-Shapiro G. ACM SIGKDD Explorations Newsletter. 2000 Jan 01. Knowledge Discovery in Databases: An Overview   URL: https://dl.acm.org/doi/10.1145/846183.846197 [accessed 2020-04-07]
    7. Rushing J, Ramachandran R, Nair U, Graves S, Welch R, Lin H. ADaM: a data mining toolkit for scientists and engineers. Computers & Geosciences 2005 Jun;31(5):607-618. [CrossRef]
    8. Dangare CS, Apte SS. Improved Study of Heart Disease Prediction System using Data Mining Classification Techniques. IJCA 2012 Jun 30;47(10):44-48. [CrossRef]
    9. Sherstinsky A. Fundamentals of Recurrent Neural Network (RNN) and Long Short-Term Memory (LSTM) network. Physica D: Nonlinear Phenomena 2020 Mar;404:132306. [CrossRef]
    10. Haggag A, Ibrahim Khalil A, Elzahed E, Abdelhamid M. Study of Fingerprints Pattern in Breast Cancer Patients Insharkia Governorate, A Case –Control Retrospective Clinical Study. Zagazig University Medical Journal 2018 Jan 01;24(1):66-71. [CrossRef]
    11. Tahergorabi Z, Moodi M, Mesbahzadeh B. Breast Cancer: A preventable disease. Journal of Birjand University of Medical 2014;21(2):126-141.
    12. Bregman J, Mackenthun KM. Environmental Impact Statements. Chelsea: MI Lewis Publication; 2006.
    13. Santillana M, Nguyen AT, Dredze M, Paul MJ, Nsoesie EO, Brownstein JS. Combining Search, Social Media, and Traditional Data Sources to Improve Influenza Surveillance. PLoS Comput Biol 2015 Oct 29;11(10):e1004513 [FREE Full text] [CrossRef] [Medline]
    14. McGough SF, Brownstein JS, Hawkins JB, Santillana M. Forecasting Zika Incidence in the 2016 Latin America Outbreak Combining Traditional Disease Surveillance with Search, Social Media, and News Report Data. PLoS Negl Trop Dis 2017 Jan 13;11(1):e0005295 [FREE Full text] [CrossRef] [Medline]
    15. Majumder MS, Santillana M, Mekaru SR, McGinnis DP, Khan K, Brownstein JS. Utilizing Nontraditional Data Sources for Near Real-Time Estimation of Transmission Dynamics During the 2015-2016 Colombian Zika Virus Disease Outbreak. JMIR Public Health Surveill 2016 Jun 01;2(1):e30 [FREE Full text] [CrossRef] [Medline]
    16. Teng Y, Bi D, Xie G, Jin Y, Huang Y, Lin B, et al. Dynamic Forecasting of Zika Epidemics Using Google Trends. PLoS One 2017 Jan 6;12(1):e0165085 [FREE Full text] [CrossRef] [Medline]
    17. Niakan Kalhori S, Ghazisaeedi M, Azizi R, Naserpour A. Studying the influence of mass media and environmental factors on influenza virus transmission in the US Midwest. Public Health 2019 May;170:17-22. [CrossRef] [Medline]
    18. Naserpor A, Niakan Kalhori SR, Ghazisaeedi M, Azizi R, Hosseini Ravandi M, Sharafie S. Modification of the Conventional Influenza Epidemic Models Using Environmental Parameters in Iran. Healthc Inform Res 2019 Jan;25(1):27-32 [FREE Full text] [CrossRef] [Medline]


    Abbreviations

    COVID-19: coronavirus disease
    LSTM: long short-term memory
    RMSE: root mean square error
    SEIR: Susceptible Exposed to Infectious Recovered
    WHO: World Health Organization


    Edited by G Eysenbach; submitted 21.03.20; peer-reviewed by S Facente, G Fagherazzi; comments to author 25.03.20; revised version received 26.03.20; accepted 01.04.20; published 14.04.20

    ©Seyed Mohammad Ayyoubzadeh, Seyed Mehdi Ayyoubzadeh, Hoda Zahedi, Mahnaz Ahmadi, Sharareh R Niakan Kalhori. Originally published in JMIR Public Health and Surveillance (http://publichealth.jmir.org), 14.04.2020.

    This is an open-access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work, first published in JMIR Public Health and Surveillance, is properly cited. The complete bibliographic information, a link to the original publication on http://publichealth.jmir.org, as well as this copyright and license information must be included.
